1960-62 Frames are one inch shorter in height.  Stock V8 motor mounts(brace) are very rare and can be sold for a pretty penny on eBay. There were two V8 frame motor mount setups. The brace style as shown in the first set of photos and these odd towers in the second set of photos. The brace style is not compatible with any swap. Some people say they have used the tower style in a swap but you can sell them for way more than the cost of brand new 67-72 V8 frame perches. The 67-72 V8 frame perches may require slight notching the top of the side frame rails to be as skinny as a 68-72 C10. 1963-67 have wider frame rails and the reproduction 67-72 V8 frame stands from are generally made for the skinnier frame rails. The reason 1968-72 have skinnier frame rails is because 1968 was the first year that the BBC was offered and they needed a bit more space for the exhaust.

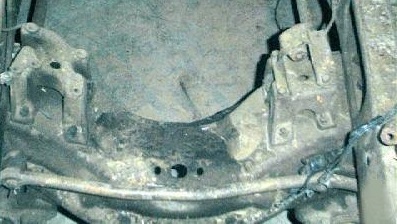

V8 Engine Brace is bolted to the middle of the engine crossmember similar to a transmission rubber mount

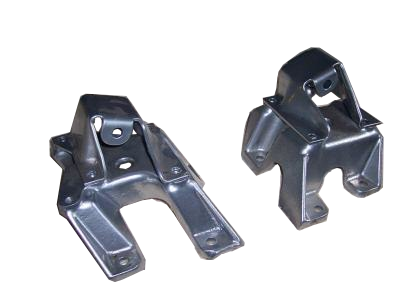

V8 Towers

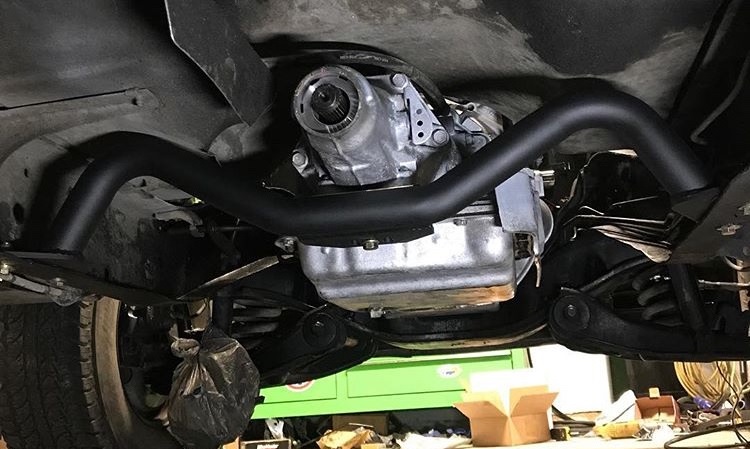

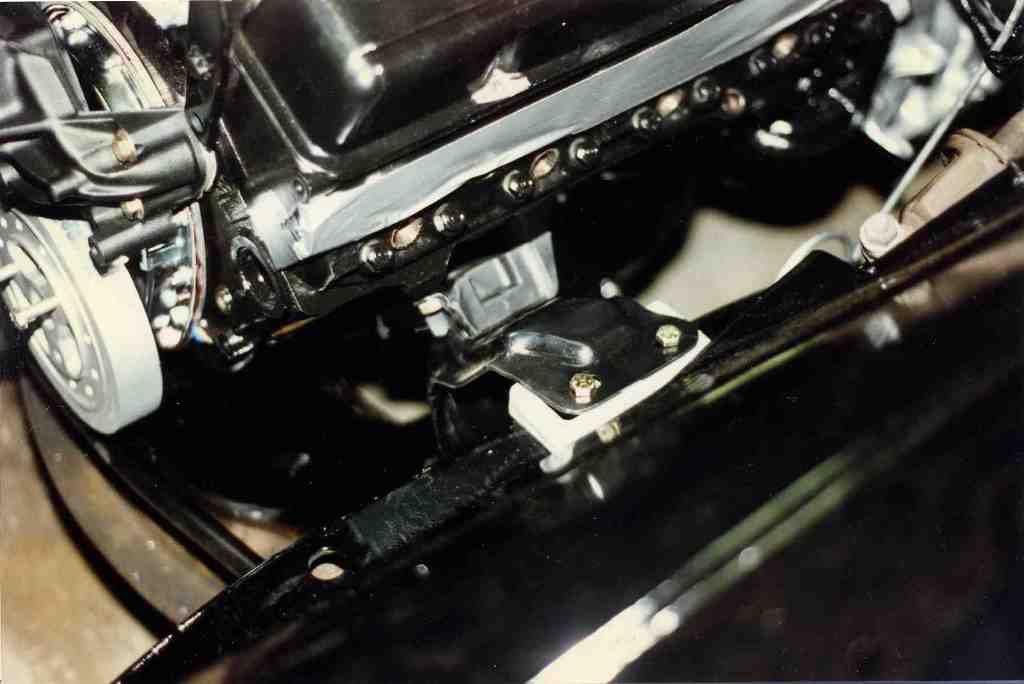

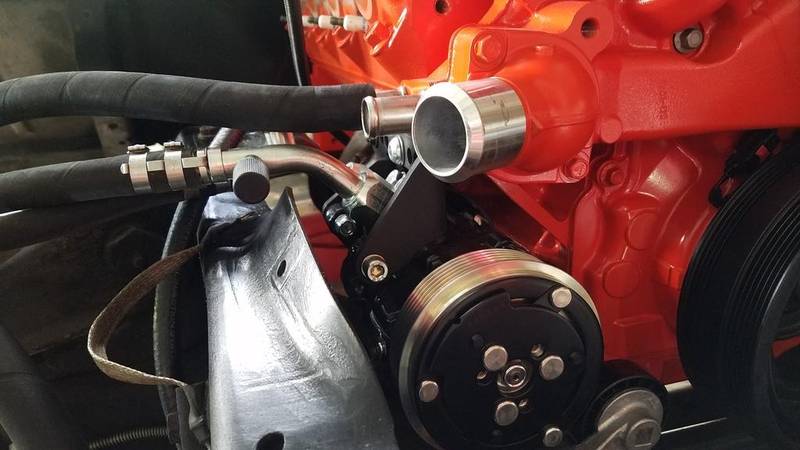

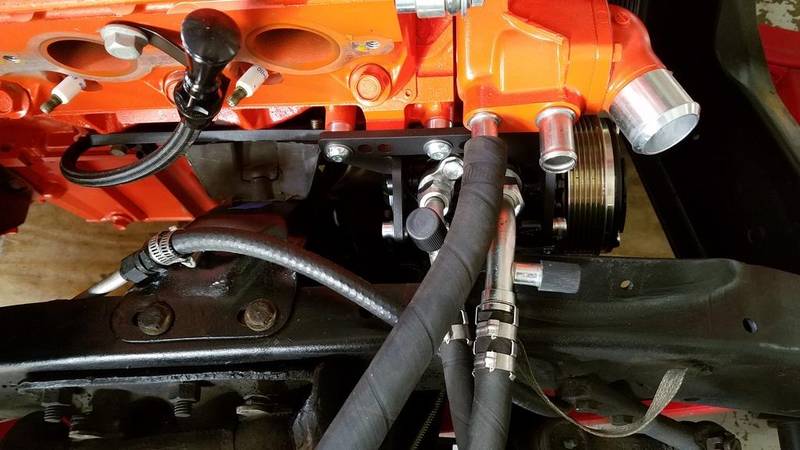

You can use the 67-72 V8 SBC Frame Perches  as long as you have an inch spacer on top of the frame or even the 73-91 C10/20 V8 Frame Perches although these will require further modifications such as drilling the engine crossmember and require the 73-91 Conversion Mounts for LS GEN III/IV or LT GEN V. C10 and C20 73-91 Frame Perches have different heights as well so you will have to accomodate for whatever setup you end up with. The frame width on 60-62's are more narrow than 63-91 C10/20's so unfortuantely you cant use our C10 adjustable transmission crossmember. The following two photos is a picture of 67-72 V8 C10 Frame Perches with the one inch spacer on top of the frame in a 1960-62 C10.

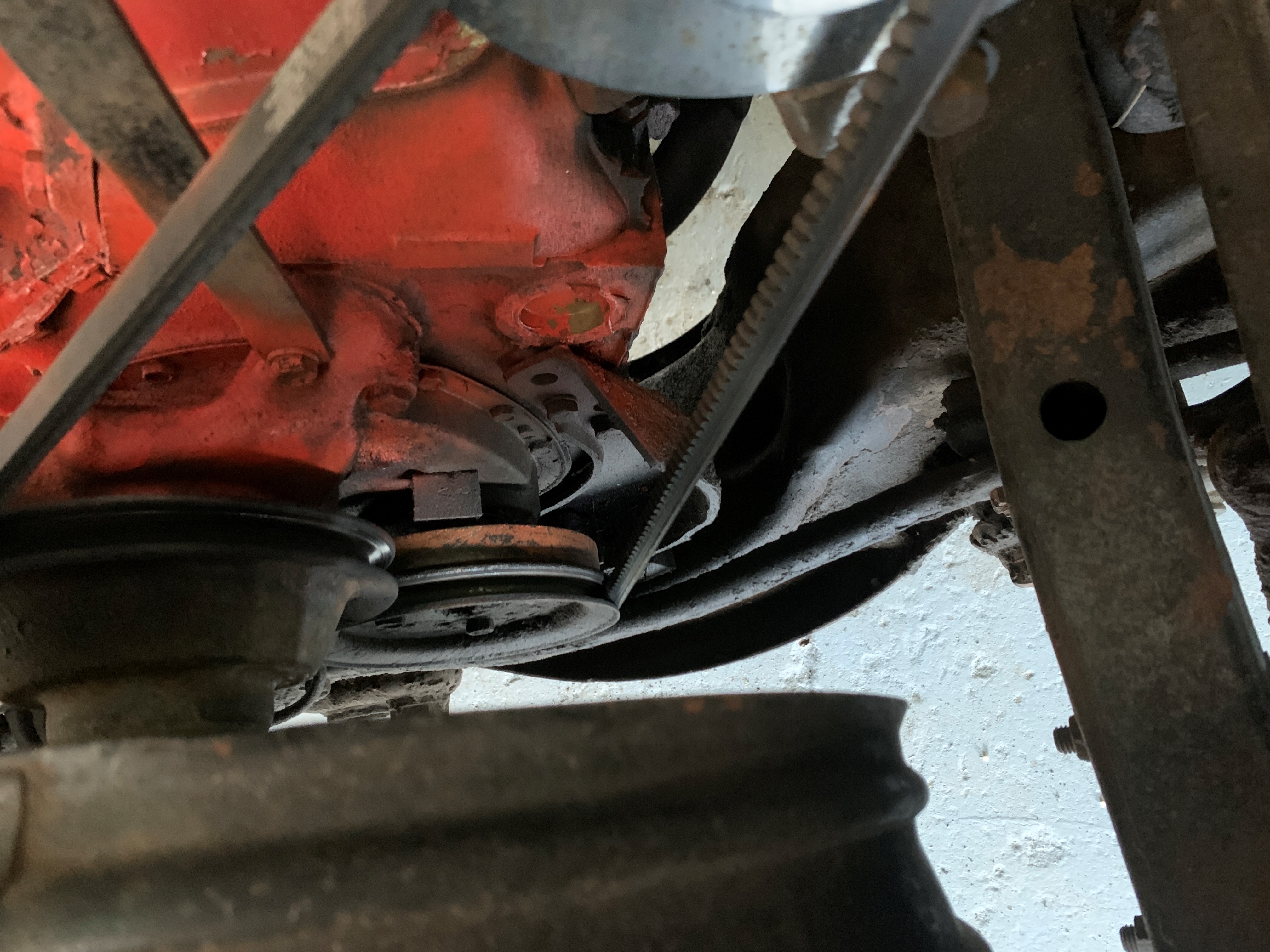

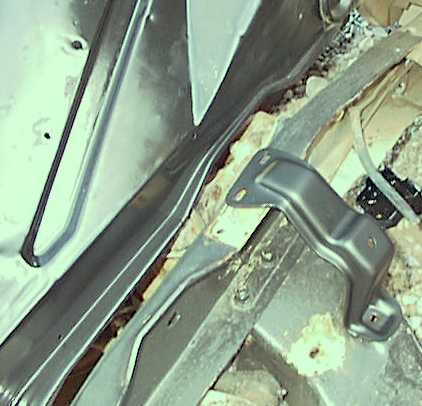

  1963-66 If placing an LT GEN V engine in there, you may have to move the V8 Frame Perches forward one hole on the side frame rails and drill a new hole in the engine crossmember. If the vehicle originally came equipped with the 292 straight six, then the passenger side Frame Perch is offset and shorter compared to the V8 Frame Perch. Stock V8 Frame Perches use the rear holes on the frame and are straight across from each other. The driver side Frame Perch are all the same no matter what engine was originally in the vehicle. The following photos are the differences on the passenger side.

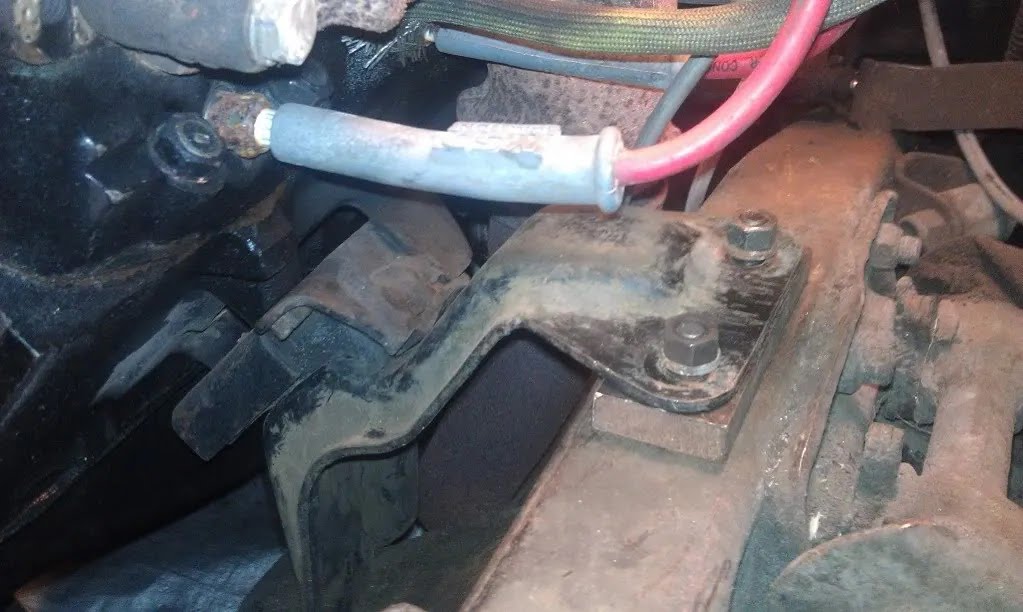

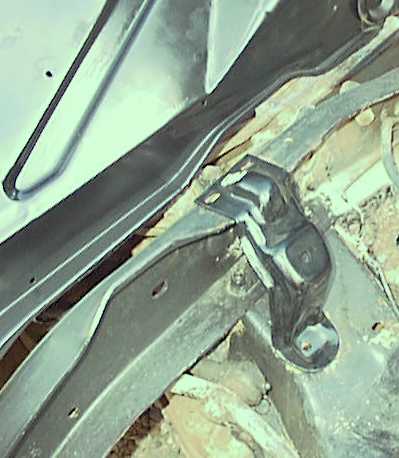

292 I-6

SBC Rubber Motor Mounts that bolt to these V8 67-72 Frame Perches

     *Pre-notched for DD-Slider's/DD-LT-Glider's

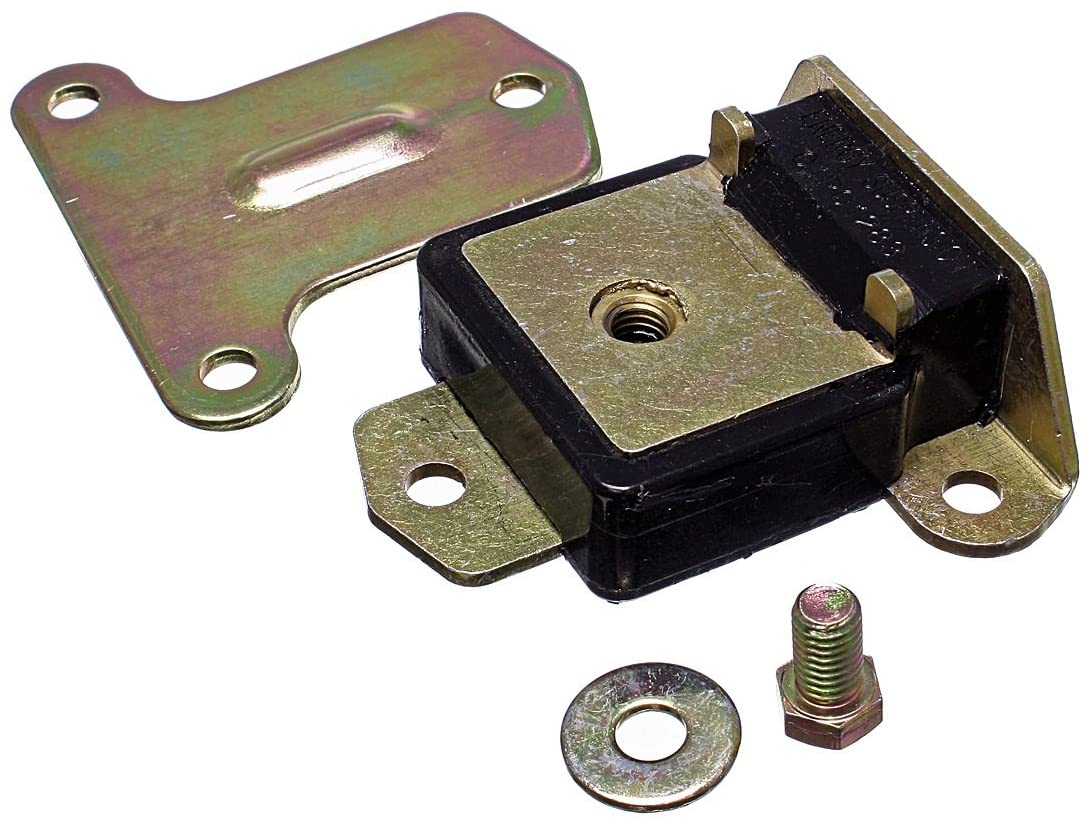

63-72 V8 C10 SBC Energy Suspension Mount is 3.1156G (Poly)





LS GEN III/IV Conversion Mount Options:





DD-LS-DOUBLE-D-S (Steel)

(Starting out in raw non painted steel so make sure you paint them before the final install otherwise they will rust. Otherwise they are offered in black textured powdercoat for a small additional charge)



DD-LS-DOUBLE-D-A (Aluminum)







]DD-Slider

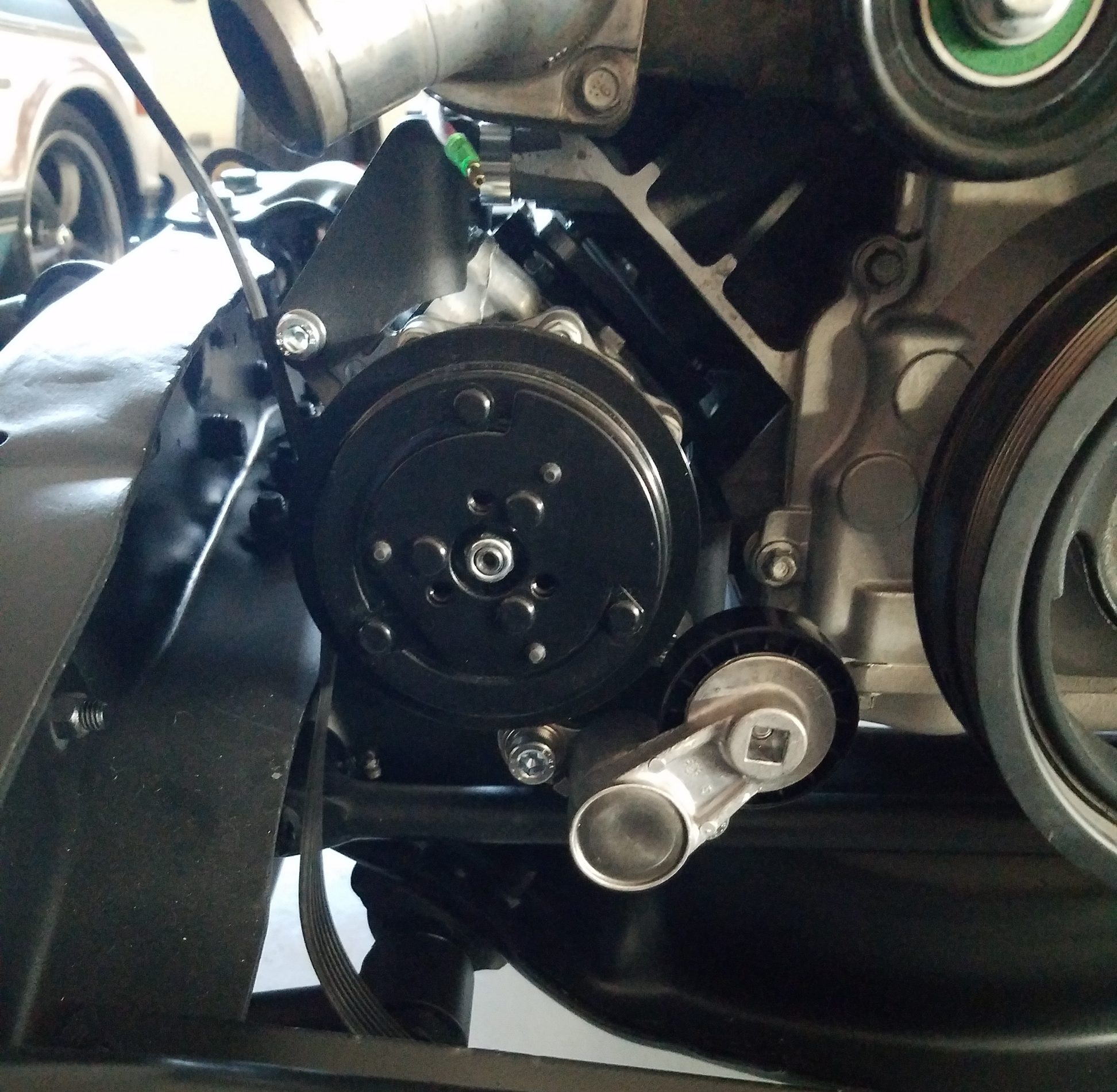

*Not compatible with low mount AC and passenger side motor mount requires a notch on the lower side

Installation







LT GEN V Conversion Mount Options:





DD-LT-DOUBLE-D-A (Aluminum)





DD-LT-GLIDER

*Not compatible with low mount AC and passenger side motor mount requires a notch on the lower side



http://www.persh.org/pickup/IdeaPage.htm

Exhaust

DD-62-1302LS1-C

Schoenfeld Long Tube 1 3/4" with 5/16 flanges, 16ga primaries, 02 Seconor bungs installed in collector, and excellent spark plug access. Ceramic Coated.

Fits 2WD and 4WD frames.





DD-HOOKER-EM



Hooker block hugger manifolds. Fits 2WD and 4WD frames.

Speed Engineering Shorty Swap Headers

25-101
