1963-87 K 4X4 Transmission Cross Member

1963-84 K5 K10 K20 K30 4X4 Transmission Cross Member

1963-84 K5 K10 K20 K30 4X4 Transmission Cross Member

Click to enlarge

Price	$299.99
Model	DD-4X4-K-TRANS-EARLY
Manufacturer	Dirty Dingo
Quantity:
	Add to Wish List

Available Options:
Transmission Mounts:


Powder Coat:

Description

This item is an oversized item and shipping charges will apply.

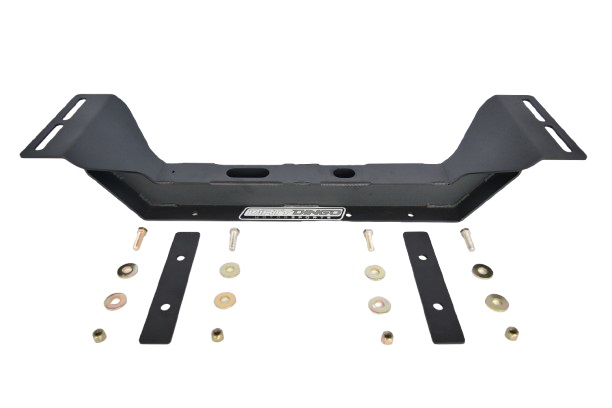

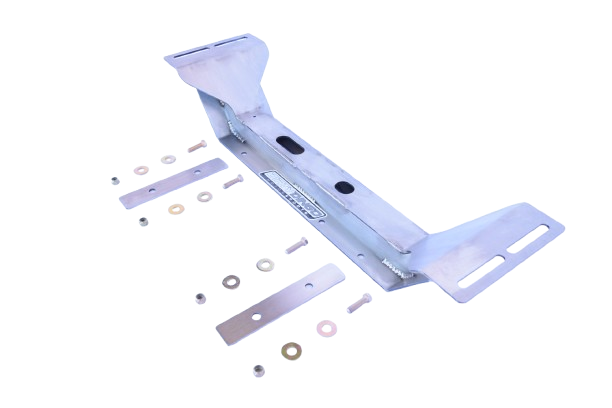

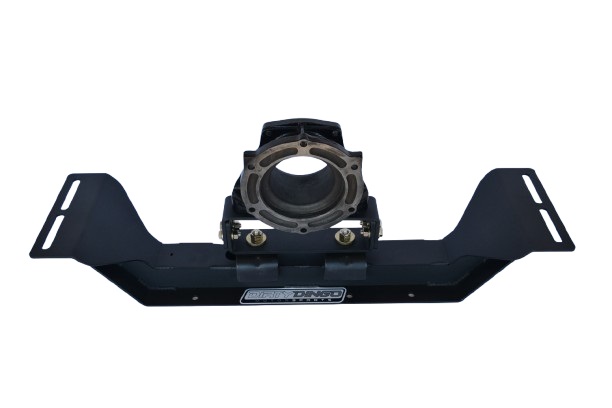

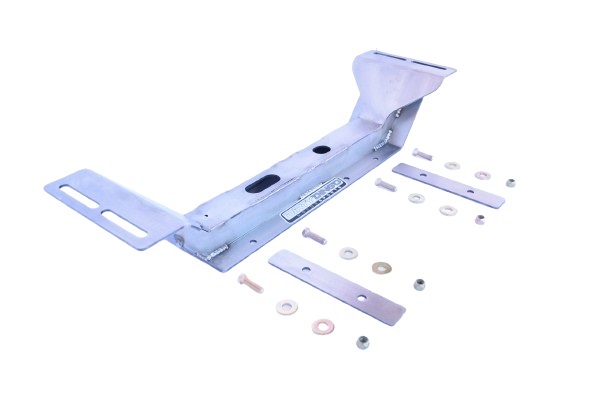

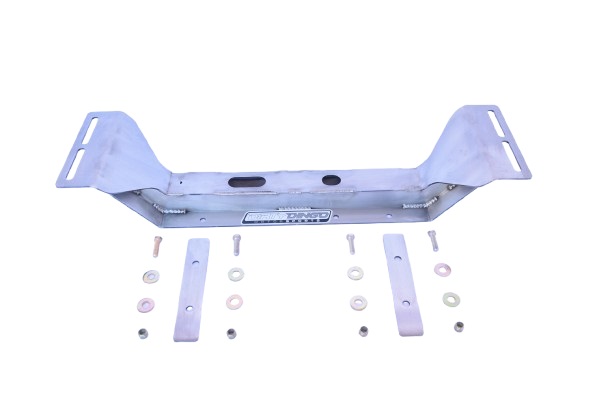

Dirty Dingo 4X4 transmission cross member bolts into 1963-84 Chevy K5, K10, K20, K30 Square Body / GMC Trucks / SUV's. Laser cut from 3/16 high carbon grade 70 steel plate steel and CNC folded. Designed to clear cardan joints when using a newer transfer case. Boxed-in heavy duty design and weighs 28 lbs without hardware. Welded and cooled in a fixture for precision fitment. Frame mounting holes are slotted for 3" of adjustment. Designed to be used with 1967-1984 style transmission mounts. Includes 1/4 thick steel top frame support plate and grade 8 hardware. Shown with optional late model 4L60, 4L65, 4L70, 4L80, 6L80, 6L90- 8L90- 10L90 Silverado and 4 and 5 speed transmission mount adapter DD-LMTA.

Installation Instructions

* Plain raw steel (Black Texture Powder Coat Available).

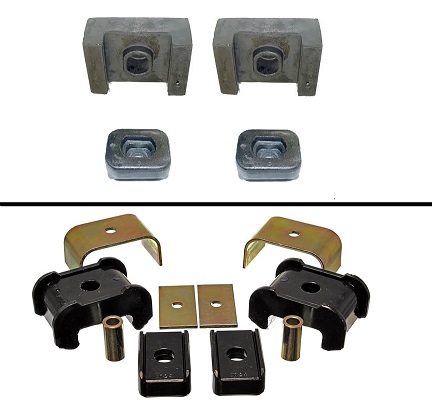

* Optional rubber transmission mounts.

* Optional Urethane transmission mounts.

* Optional Late Model Adjustable Transmission Adapter DD-LMTA.

* Early 1963-84 and Late 1985-91 use a different bolt kit for the transmission mount.

Images

Mfg Info

Manufacturer Info
• Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!

Extra Info

Notify me of updates to 1963-84 K5 K10 K20 K30 4X4 Transmission Cross Member
Tell someone you know about this product.

Shipping

This is a heavy item and its weight is 48.00 lb(s)
