LS Conversion Swap Sanden 508 A/C Bracket Assembly

LS Sanden 508 A/C Bracket Assembly

Click to enlarge

Price	$274.99
Model	DD-LS-SANDEN-AC-CM
Manufacturer	Dirty Dingo
Quantity:
	Add to Wish List

Description

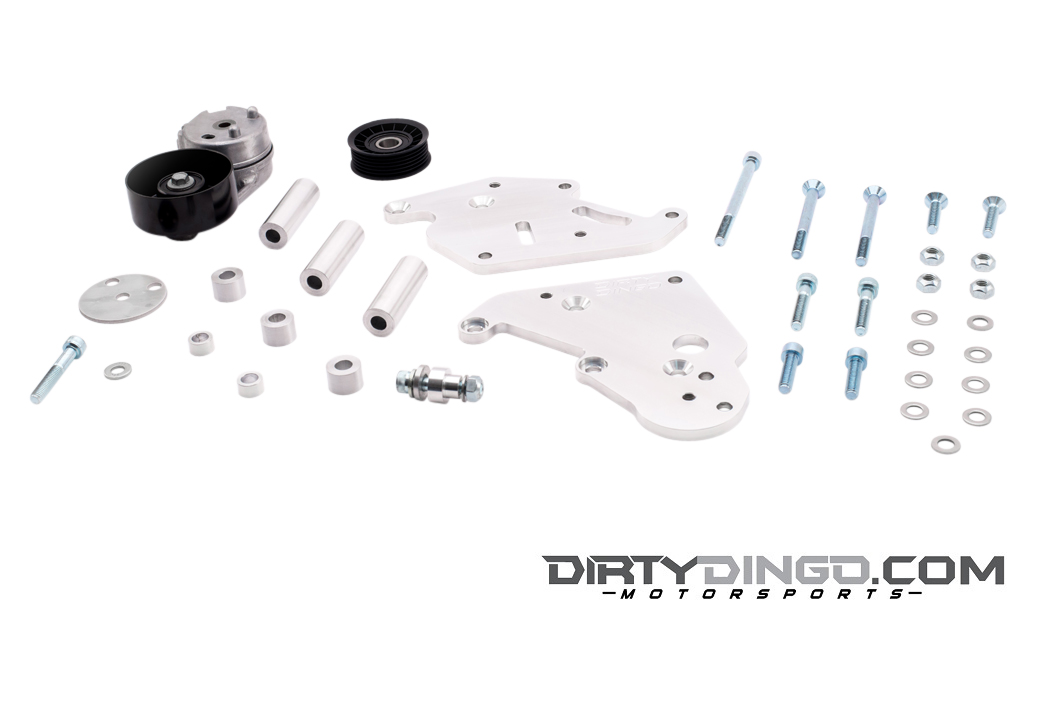

Dirty Dingo billet aluminum air conditioning bracket for mounting the Sanden type SD7H15 4711, 4665, and 6669 508 A/C compressors on the passenger side of 1998-02 Camaro-Firebird, GTO Gen 3 and Gen 4 LS engines. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely CNC machined on both sides. Comes complete with precision CNC lathe machined 6060-T6 1" thick billet aluminum spacers. Includes grade 8 silver zinc coated socket head allen bolts and stainless steel washers. Includes new Gates idler pulley and Gates monster spring loaded belt tensioner. Places the A/C compressor in line with the factory serpentine belt drive system. This bracket will clear all LS throttle bodies.

* Does not include compressor or accessory belt.

* Designed to be used with 7 or 8 rib compressor pulley.

* Will not clear factory EGR solenoid on passenger head, must be relocated.

Images

Mfg Info

Manufacturer Info
• Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!

Extra Info

Notify me of updates to LS Sanden 508 A/C Bracket Assembly
Tell someone you know about this product.

Customers who bought this product also purchased

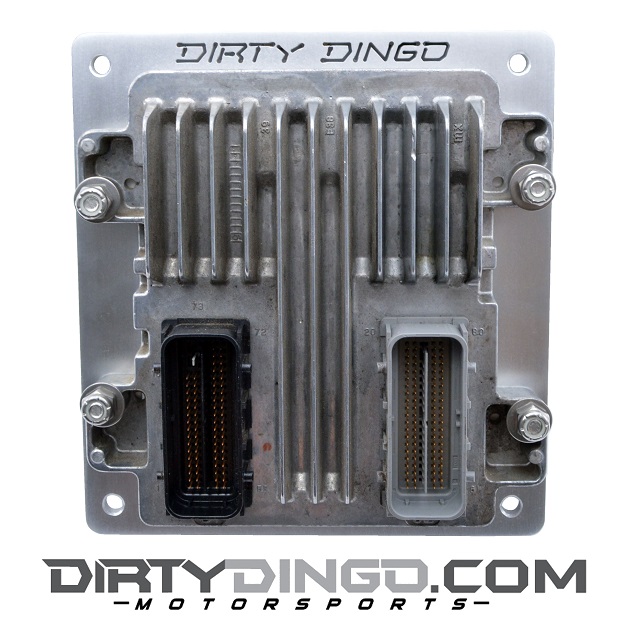

LS E38 E40 E67 Gen IV PCM Billet Mounting Plate 58X
