LS Sanden 508 A/C Bracket Assembly

LS Sanden 508 A/C Bracket Assembly
Click to enlarge
Price $274.99
Model DD-LS-SANDEN-AC-VVT
Manufacturer Dirty Dingo
Quantity:
  Add to Wish List

Description

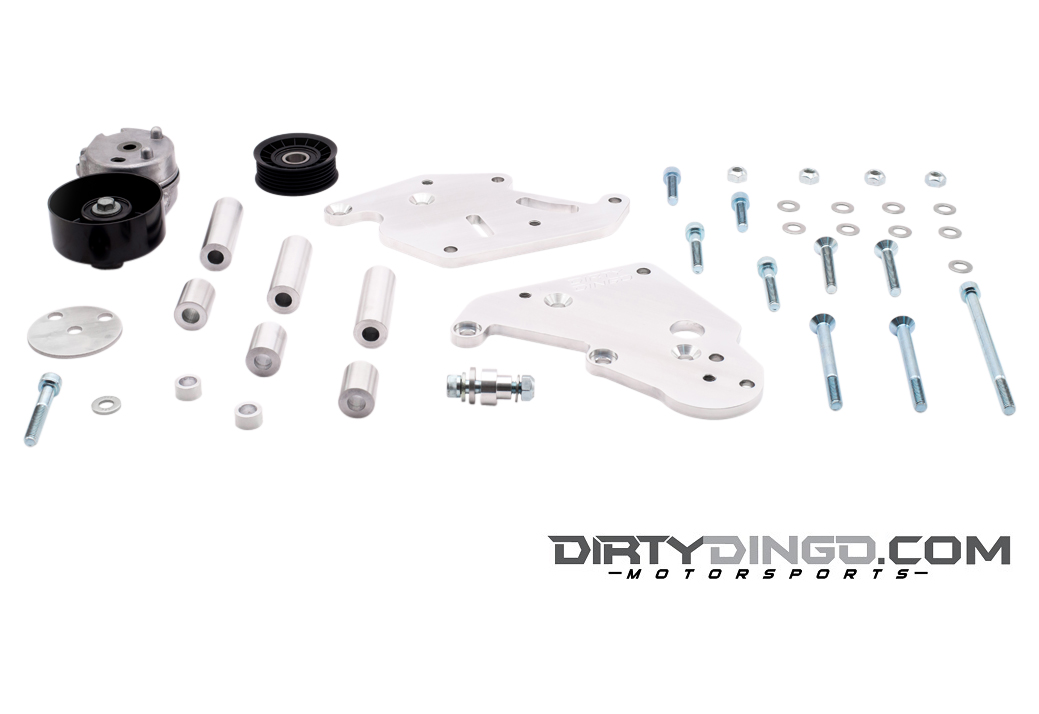

Dirty Dingo billet aluminum air conditioning bracket for mounting the Sanden type SD7H15 4711 508 A/C compressors on the passenger side of 2008-2015 Gen 4 LS VVT (Variable Valve Timing) engines. Machined from 3/8 thick 6061-T6 aircraft billet aluminum. Comes complete with precision CNC lathe machined 6060-T6 1" thick billet aluminum spacers. Includes grade 8 silver zinc coated socket head allen bolts, and stainless steel washers. Includes new Gates idler pulley and Gates monster spring loaded belt tensioner. Places the A/C compressor in line with the factory serpentine belt drive system. This kit is designed to fit LS Vortec Truck accessory spacing. 2010-2015 Camaro accessories are the same as Vortec Truck- not 1998-02 Camaro.



* Does not include compressor or accessory belt.

* Designed to be used with 8 rib compressor pulley.

* Will not clear factory EGR solenoid on passenger head, must be relocated.

* Will not work with 6669 or 4665 Sanden compressors.
