LS Conversion LS Swap Billet Truck Low P/S R4 Accessory Brackets

LS Billet Truck Low Power Steering R4 AC Accessory Brackets

LS Billet Truck Low Power Steering R4 AC Accessory Brackets

Click to enlarge

Price	$529.99
Model	DD-LS-ALT-PS-AC-R4
Manufacturer	Dirty Dingo
Quantity:
	Add to Wish List

Description

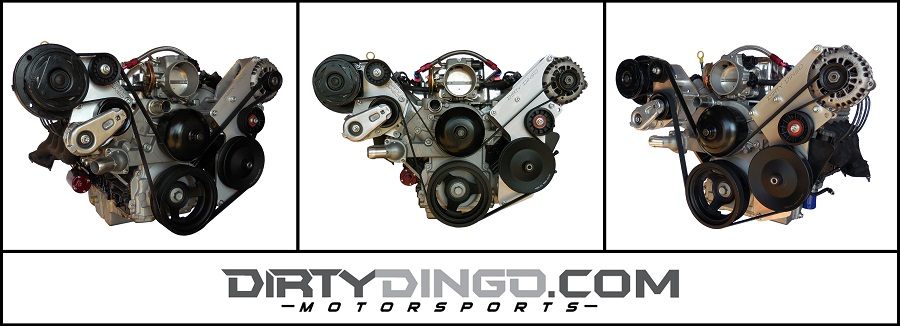

This is a package deal on both sides of the Truck accessory engine. This kit includes our billet alternator/power steering bracket for truck accessories and GM R4 A/C compressor bracket.

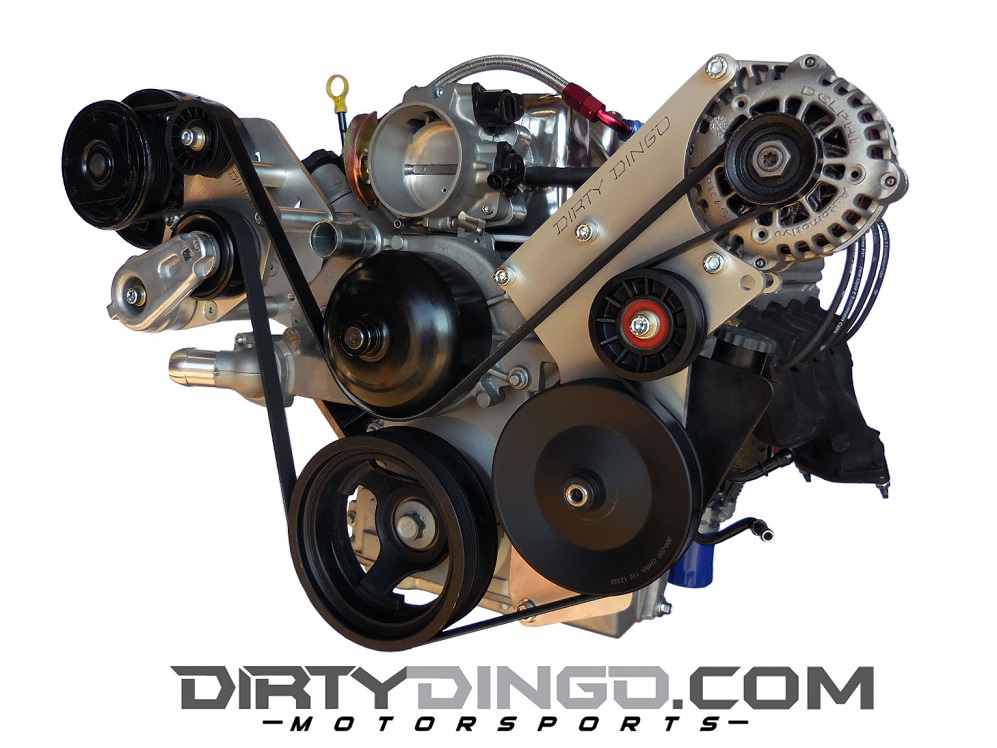

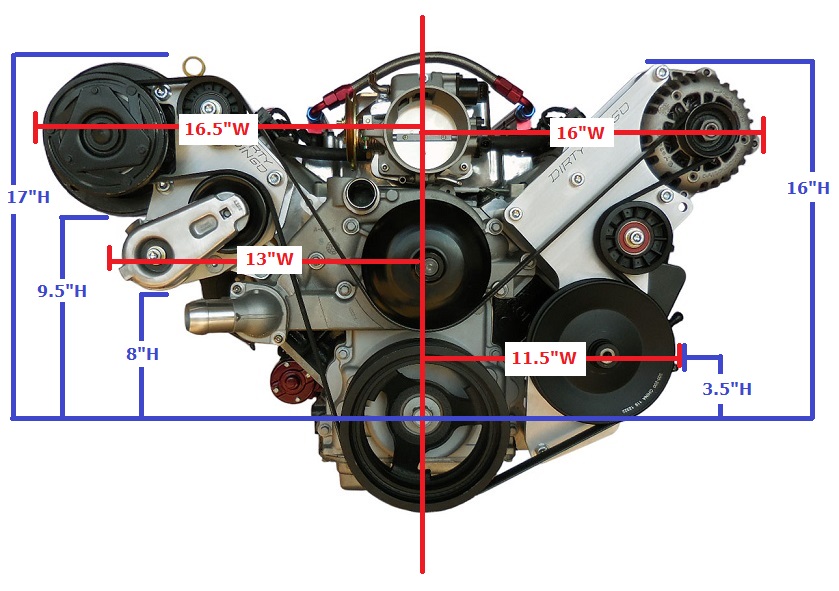

The Alternator/Power steering bracket uses your 2000-2010 LS 4.8, 5.3, 6.0, 6.2 engine factory Truck accessories. This bracket will relocate and lower your alternator while retaining the stock Truck power steering pump, and alternator. No need to buy a different style power steering pump, reservoir, pulley, and idler pulley. This bracket positions the top of the alternator 1/4 inch below the top of an LS1 car intake manifold and comes with a new idler pulley. Will fit large or small case alternators. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center, completely CNC machined on both sides to 3/8 thickness. If you are using the LS Truck style accessories and having hood clearance issues- this is the solution. Includes grade 8 zinc coated allen bolts, and stainless washers.

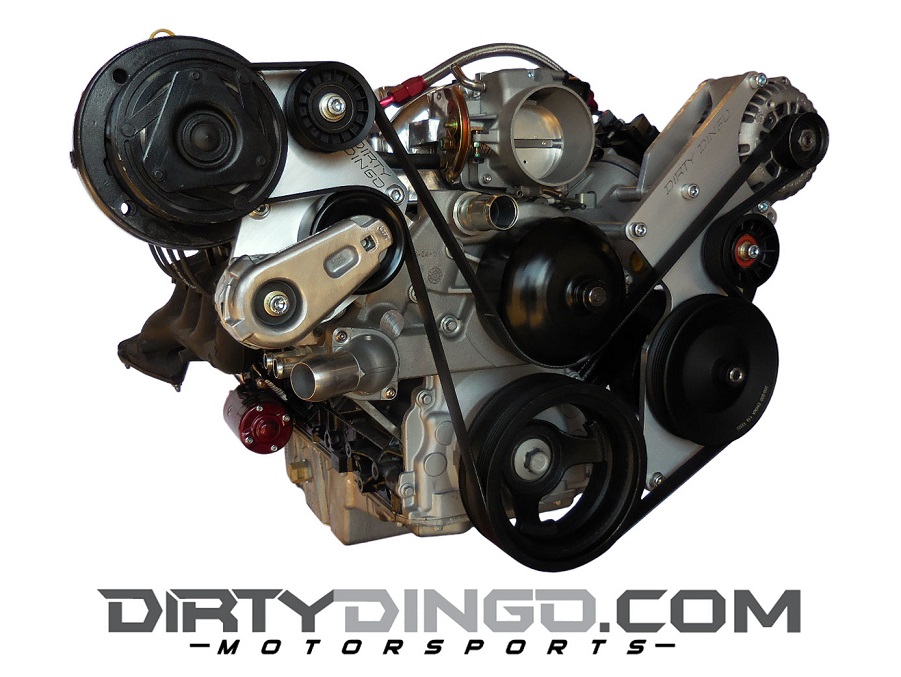

The billet aluminum air conditioning bracket for mounting the GM R4 A/C compressor on the passenger side on an 2000-2013 LS engines is CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center, completely CNC machined on both sides to 3/8 thickness. Comes complete with precision CNC lathe cut 6061-T6 1 inch thick billet aluminum spacers and grade 8 zinc coated allen bolts, and stainless washers. Includes a Gates monster spring loaded belt tensioner and Gates idler pulley. No more slipping belts from running the stock or cheap spring loaded tensioners. Installs the A/C compressor in line with the factory serpentine belt drive system.

This kit is designed to fit stock truck accessories with a truck water pump, or 1998-02 Camaro water pump with water pump spacers.

* A/C compressor and belt not included.

* Water pump spacers are not included in this kit.

* Does not clear factory EGR purge valve located on the front passenger cylinder head. Must be relocated.

* Designed to fit LS alternators from- 1998-2002 Camaro, Firebird, 2004-06 GTO, 2000-2013 LS Vortec Truck large and small case, and 2010-15 Camaro Alternators.
