LS Camaro Style Close Fit Alternator Power Steering Brackets

LS Low Mount Close Fit Alternator Power Steering Brackets

LS Low Mount Close Fit Alternator Power Steering Brackets

Click to enlarge

Price	$144.99
Model	DD-LS1-ALT-LM-CPS-CM
Manufacturer	Dirty Dingo
Quantity:
	Add to Wish List

Description

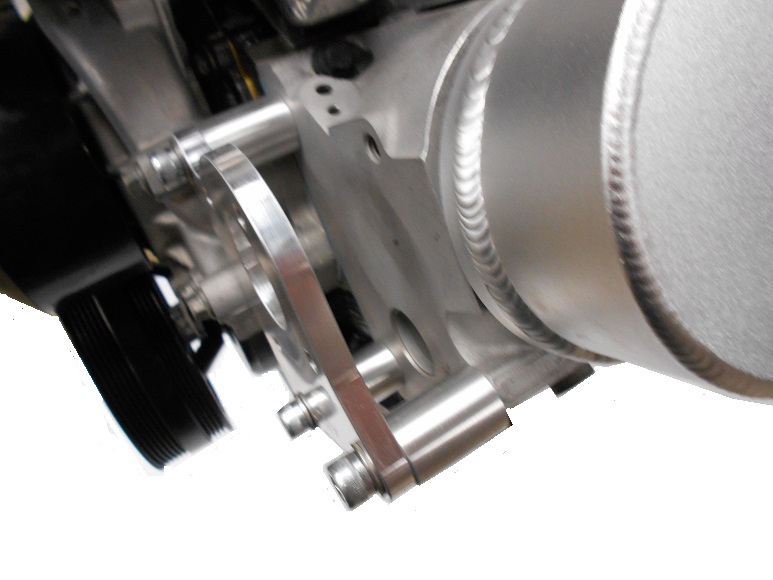

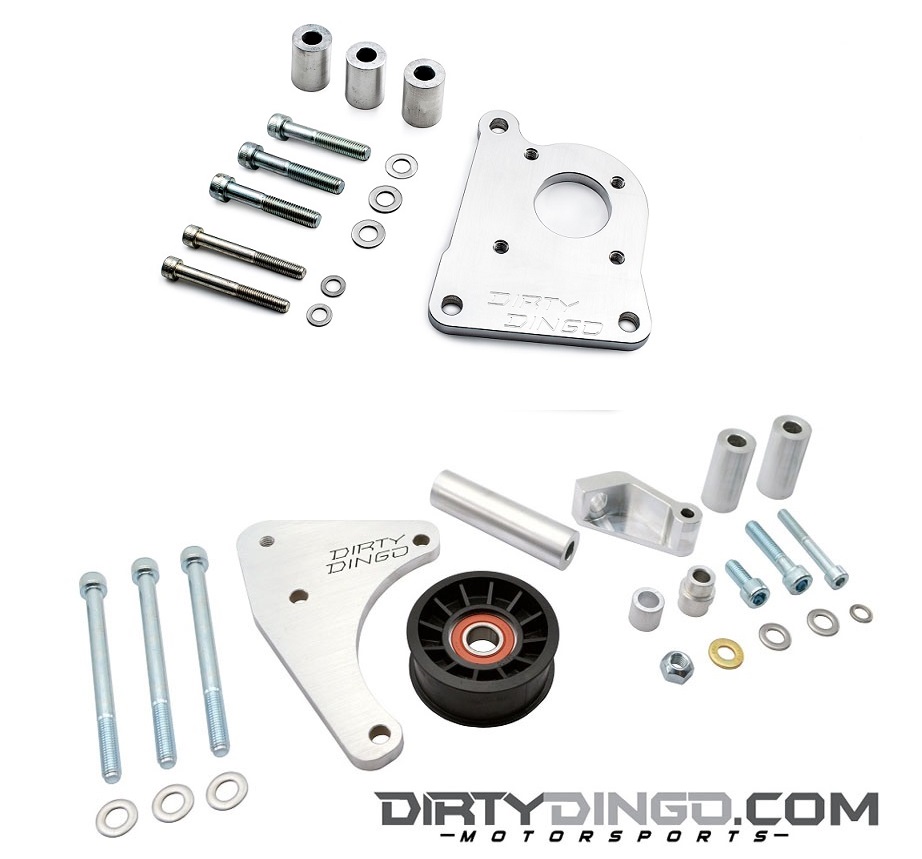

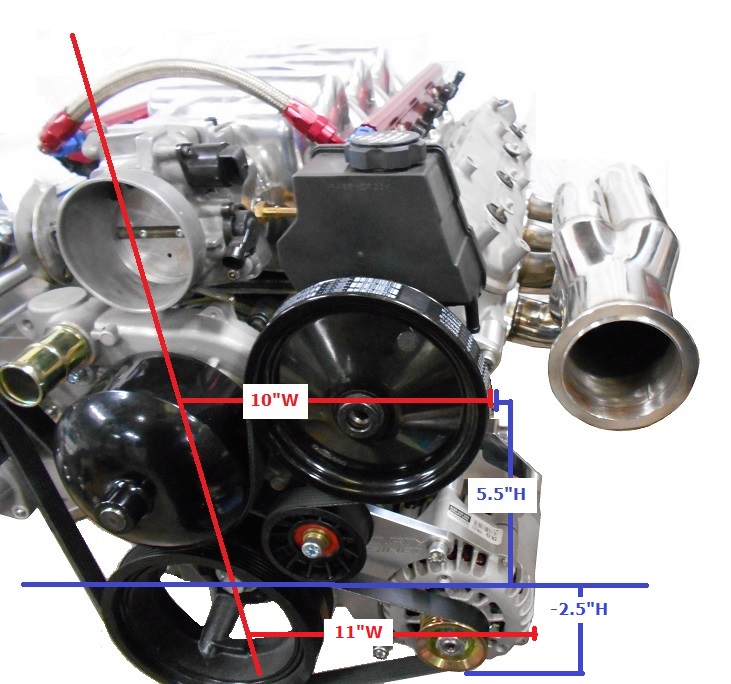

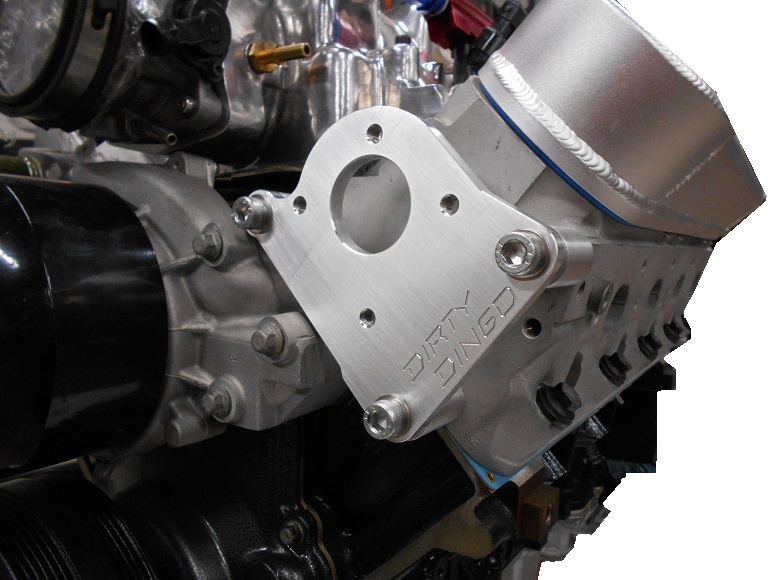

Close fit LS1 Camaro style alternator and power steering bracket. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. Completely CNC machined on both sides. This bracket fits Camaro-Firebird-GTO accessory spacing and raises the 1998-02 Camaro power steering pump and reservoir up 2 1/4 inches and moves the pump in 2 inches closer to the center of the engine for more clearance with forward facing turbo headers. Double drilled to also fit Howe's high volume race pumps. Includes additional idler pulley, precision 6061-T6 billet CNC lathe cut spacers, grade 8 zinc coated allen bolts, and stainless steel washers. Will fit all Gen 3 and Gen 4 LS engines.

* Designed to be used with 1998-02 Camaro Power steering pump, reservoir, and pulley.

* Will not fit GTO, Corvette, or Truck Power steering pumps or pulleys.

* With low mount alternator and stock Camaro tensioner Gates K060815 belt.
