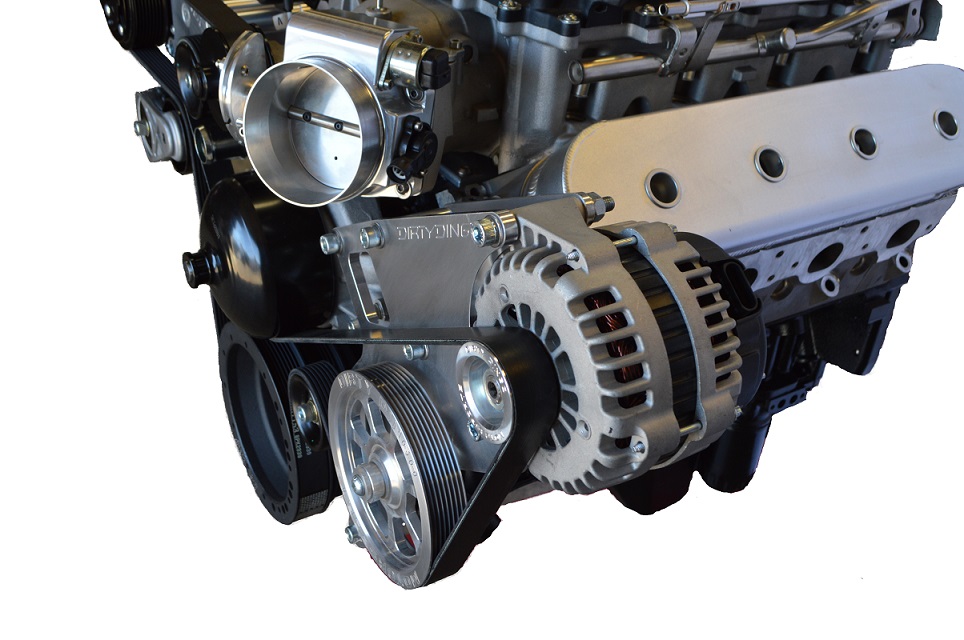

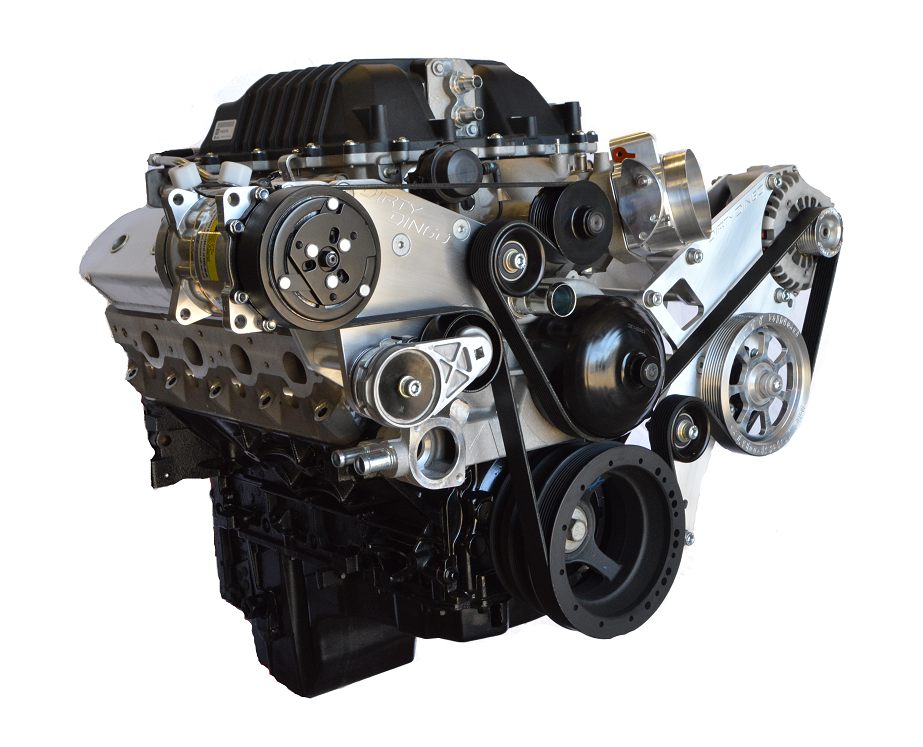

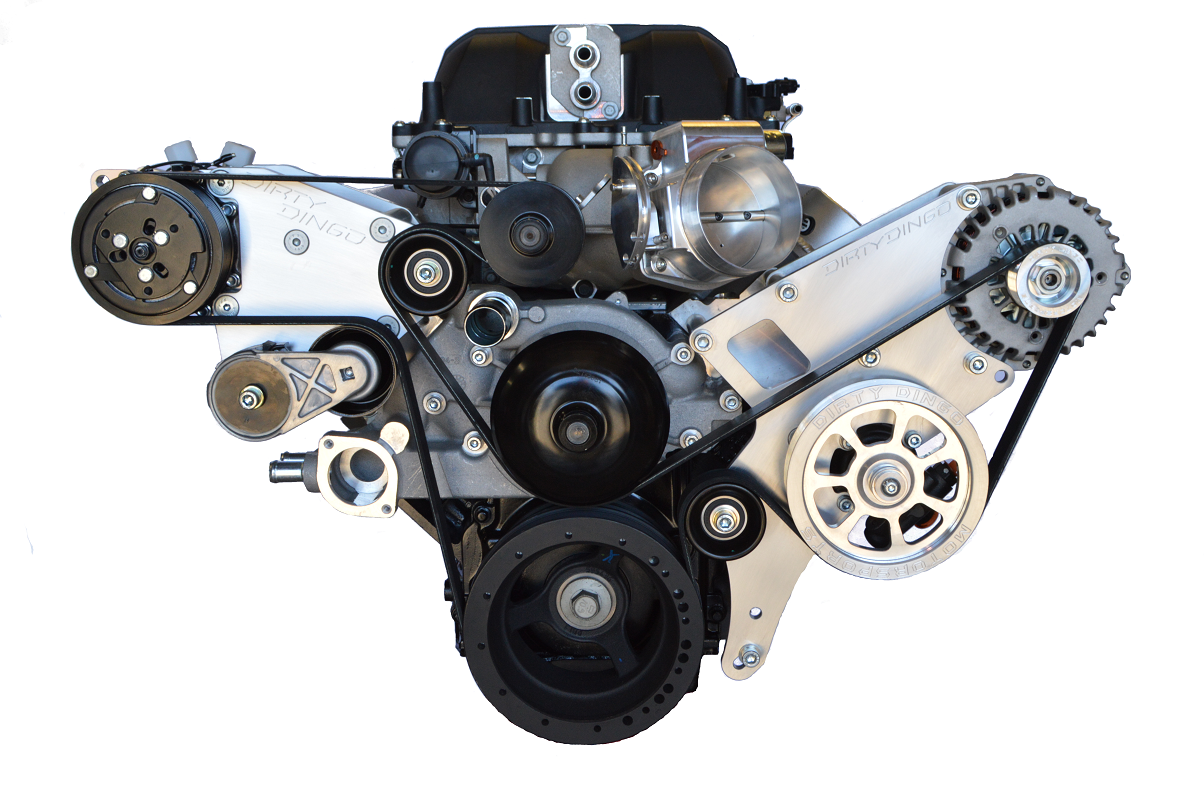

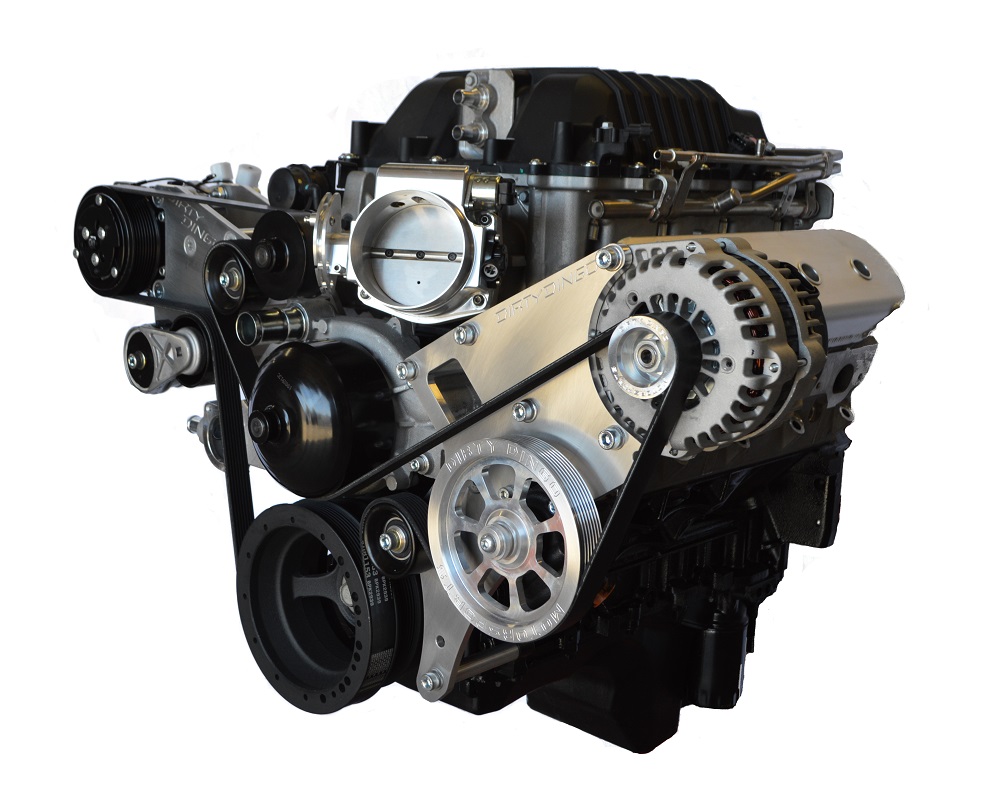

Dirty Dingo CTSV 8 rib "Front Engine Accessory Drive" kit. Billet aluminum alternator, power steering and AC brackets for 1997-2013 LS engines using the factory CTSV or LSA harmonic balancer.
The alternator and power steering bracket is designed to fit large or small case Vortec truck or 1998-02 Camaro alternators and a 1998-2002 Camaro power steering pump. Must use Sanden 4711 8 rib 508 Compressor.
This set-up will require using an aftermarket remote power steering reservoir. Multiple hole locations for the AC idler pulley for using the factory or smaller supercharger pulleys, or with our billet LS cathedral port intake manifold adapters while using the same belt.
Kit includes both engine side accessory brackets, billet aluminum 8 rib power steering pulley, billet aluminum 8 rib alternator pulley, both idler pulleys, tensioner, billet water pump spacer kit, billet power steering return fitting, and 8 rib serpentine belt.
This kit uses a different belt if you are using our LS3 intake manifold adapter plates with cathedral port heads.
Make selection above for correct belt.
CNC machined from 1/2" 6061-T6 billet aluminum to 3/8 thick on a precision vertical CNC milling center.

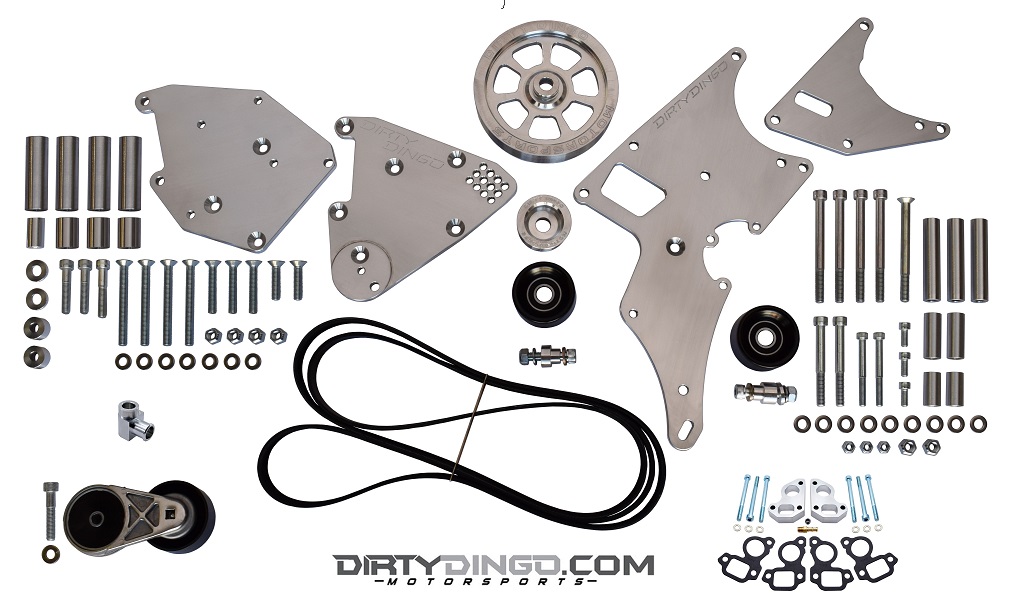

Kit includes-
- Alternator-Billet power steering bracket, Idler pulley, billet 8 rib alternator pulley, Billet 8 rib power steering pulley.
- AC- Billet AC bracket, idler pulley, tensioner.
- New 8 rib belt.
- Billet water pump spacer kit
- Billet power steering return fitting
* Will only work with a Sanden model 4711 8 rib AC compressor.
* Will not work with VVT timing covers!
* Must use a factory LSA or ZL1 harmonic balancer, fitment does not allow using a larger aftermarket balancer.
* Designed to fit LS alternators- 1998-2002 Camaro and 2000-2013 LS Vortec Truck. CAN NOT USE AN ALTERNATOR WITH A DECOUPLER PULLEY, CORVETTE/CTSV OR DR45 CASE.
- Will fit single wire Powermaster small case48247 165A or Powermaster large case 48237 2258A using Powermaster with Powermaster 8 Groove 108 or 201 pulley.
* Designed to fit 1998-2002 Camaro-Firebird power steering pump. AC Delco 36-011; Autozone Duralast 982465, New Duralast 63105N; Oreilly's MasterPro 734-0119, Cardone 96-69849
* Designed to fit 1998-2002 Camaro-Firebird water pump.
|
